SFFECO Automatic / modular series is a self-contained stand alone system, ideally economical, simple and flexible to suit pre-prevailing local conditions. The Design concept of operation features the sprinkler technology incorporating a gas tight quartzoid bulb sprinkler head fitted with an optional pyrotechnic electric actuator, 24 vdc, means of actuating the system can be from a remote controlled release fire extinguishing control panel or thermally fusing the glass bulb which comes in various fixed temperature ranges

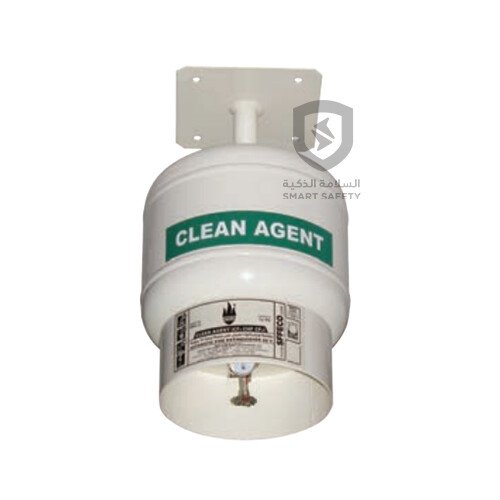

SFM modular cylinders furnished with ceiling mounting brackets are of carbon steel material, factory argon/CO2 weld, sand blasted, white finished, oven baked and coated with electrostatic powder
SFM extinguishment chemically known as heptaflouropropane (CF3-CHF-CF3) is a clean and effective environmentally accepted replacement for halon. It is effective fire extinguishing agent that can be used on surface fire of flammable liquids and solid combustible materials. Likewise, effective for total flooding of normally occupied areas to protect the highly invested equipment
SFM modular automatic installations are primarily well-suited for the protection of oil furnaces and heating paint spray booths, flammable liquid storage areas, engine compartment in particular for boats, other work installations and small rooms that are particularly exposed to danger of fire. Cylinders are hydrostatically tested at 30 bar
Suitable for Class A and B Fires
Data Sheet
